5mm neodymium buck ball toy ndfeb magnets from China

Location: Home >Neodymium Magnet >Sintered NdFeb Magnet > 5mm neodymium buck ball toy ndfeb magnets

5mm neodymium buck ball toy ndfeb magnets

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order:	100 Set/Sets
Delivery Time:	30 Days

Contact Now

Basic Info

Model No.: GWM-698

Additional Info

Packaging: Cartons, Pallets

Transportation: Ocean,Land,Air

Port: Shanghai,China

Product Description

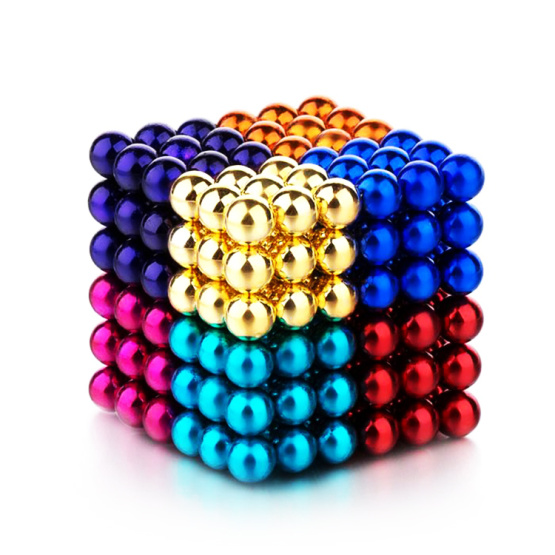

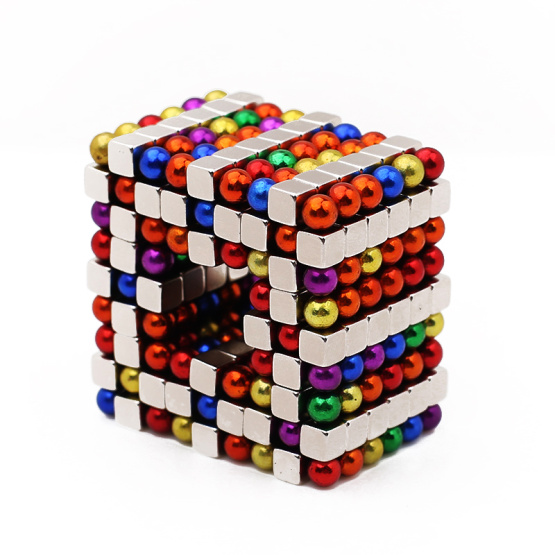

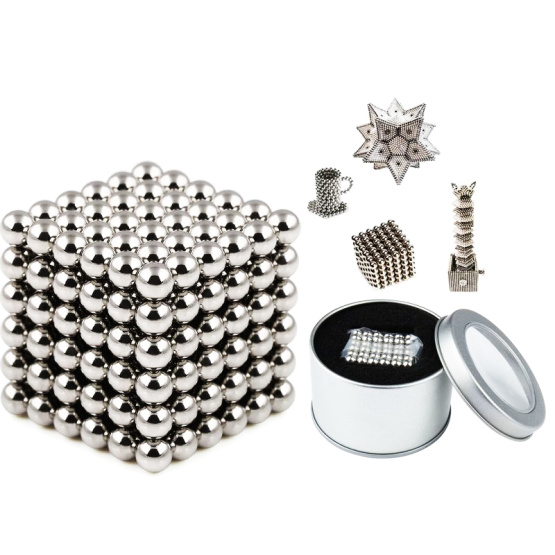

Buck Ball Magnet use for Fun.

Magnetic Ball 026 Magnetic Ball 018

Sintered NdFeB magnets are the most powerful commercialized permanent magnets available today, with maximum energy product ranging from 26 MGOe to 55 MGOe. Sintered NdFeB magnets are the most powerful commercialized permanent magnets available today, with maximum energy product ranging from 26 MGOe to 55 MGOe. Nd-Fe-B is the third generation of permanent magnet developed in the 1980s. It has a combination of very high remanence and coercivity, and comes with a wide range of grades, sizes and shapes. With its excellent magnetic characteristics, abundant raw material and relatively low prices, Nd-Fe-B offers more flexibility in designing of new or replace the traditional magnet materials such as ceramic, Alnico and Sm-Co to achieve high efficiency, low cost and more compact devices.

Item	Grade	Remanence;				Coercivity;		Coercivity Force;		Max BH Product;				Working
		Br				HcB		HcJ		(BH)max				Temp.
		KGs		T		KOe	KA/m	KOe	KA/m	MGOe		KJ/m		°C
		Max.	Min.	Max.	Min.	KOe	KA/m	KOe	KA/m	Max	Min.	Max.	Min.
N	N40	13.2	12.6	1.32	1.26	≥10.5	≥836	>=12	>=954	42	38	334	289	≤80
	N42	13.5	12.9	1.35	1.3	≥10.5	≥836	>=12	>=954	44	40	350	318	≤80
	N45	13.8	13.2	1.38	1.32	≥10.5	≥836	>=12	>=954	46	42	366	334	≤80
	N48	14.2	13.7	1.43	1.37	≥10.5	≥836	>=11	>=876	49	45	390	358	≤80
	N50	14.5	14	1.45	1.4	≥10.5	≥836	>=11	>=876	51	47	406	374	<=80
	N52	14.8	14.4	1.48	1.44	≥10.5	>=836	>=11	>=876	53	49	422	390	<=80
	N55	15.2	14.6	1.52	1.46	≥9.00	>=716	≥11.00	>=876	56	52	446	414	<=80
M	N38M	12.8	12.3	1.3	1.23	≥11.6	>=915	>=14	>=1114	40	36	318	287	<=100
	N40M	13.2	12.6	1.32	1.26	≥11.8	>=939	>=14	>=1114	42	38	334	289	<=100
	N42M	13.5	12.9	1.35	1.3	≥12.0	>=955	>=14	>=1114	44	40	350	318	<=100
	N45M	13.8	13.2	1.38	1.32	≥12.5	>=994	>=14	>=1114	46	42	366	334	<=100
	N48M	14.2	13.7	1.42	1.37	≥12.8	>=1018	>=14	>=1114	49	45	390	358	<=100
	N50M	14.5	14	1.45	1.4	≥13.1	>=1042	>=11	>=1114	51	47	406	374	<=100
H	N35H	12.5	11.8	1.25	1.18	≥11.0	>=875	>=17	>=1353	37	33	295	263	<=120
	N38H	12.8	12.3	1.3	1.23	≥11.6	>=915	>=17	>=1353	40	36	318	287	<=120
	N41H	13.2	12.6	1.32	1.26	≥11.8	>=939	>=17	>=1274	42	38	334	302	<=120
	N44H	13.7	13	1.37	1.3	≥12.1	>=963	>=16	>=1274	45	41	358	326	<=120
	N46H	13.8	13.2	1.38	1.32	≥12.2	>=971	>=16	>=1274	47	43	374	342	<=120
	N48H	14.2	13.7	1.42	1.37	≥12.7	>=1011	>=16	>=1274	49	45	390	358	<=120
SH	N35SH	12.5	11.8	1.25	1.18	≥11.0	>=876	>=20	>=1592	37	33	295	263	<=150
	N39SH	13	12.3	1.3	1.23	≥11.6	>=923	>=20	>=1592	40	36	318	287	<=150
	N42SH	13.2	12.9	1.32	1.26	>=11.8	>=939	>=20	>=1592	42	38	334	302	<=150
	N44SH	13.7	13	1.37	1.3	>=12.1	>=963	>=20	>=1592	45	41	358	326	<=150
	N46SH	13.8	13.4	1.38	1.34	>=12.5	>=965	>=20	>=1592	47	43	374	342	<=150
UH	N33UH	12.2	11.4	1.22	1.14	>=10.7	>=851	>=25	>=1990	35	31	279	2247	<=180
	N35UH	12.5	11.8	1.25	1.18	>=11.0	>=875	>=25	>=1990	37	33	295	263	<=180
	N38UH	13	12.3	1.3	1.23	>=11.6	>=915	>=25	>=1990	40	36	318	287	<=180
	N40UH	13.2	12.6	1.32	1.26	>=10.5	>=836	>=25	>=1990	42	38	334	289	<=180
EH	N30EH	11.7	10.9	1.17	1.09	>=10.2	>=812	>=30	>=2388	32	28	255	223	<=200
	N33EH	12.2	11.4	1.22	1.14	>=10.7	>=851	>=30	>=2388	35	31	279	2247	<=200
	N35EH	12.5	11.8	1.25	1.18	>=11.0	>=875	>=30	>=2388	37	33	295	263	<=200
	N38EH	13	12.2	1.3	1.22	>=11.5	>=915	>=30	>=2387	40	36	318	287	<=200
AH	N28AH	11	10.4	1.1	1.04	>=9.70	>=772	>=35	>=2786	29	26	231	207	<=220
	N30AH	11.7	10.8	1.17	1.08	>=10.2	>=812	>=35	>=2786	32	28	255	223	<=220
	N33AH	12.2	11.4	1.22	1.14	>=10.7	>=851	>=35	>=2786	35	31	279	247	<=220
	N35AH	12.5	11.7	1.25	1.17	>=11.0	>=876	>=35	>=2386	37	33	295	263	<=220

Flow Chart Ndfeb Magnet

Ndfeb Magnet Production Line Ndfeb Magnet Production Line 1

Pallets Packing Container Packing

Neo Toy Magnet Buck Ball Magnet Neodymium Magnet Toy
